NJM4580E - Nisshinbo

Description: Dual Operational Amplifier, 2V to 18V, -40°C ~ +125°C

Download NJM4580E Model

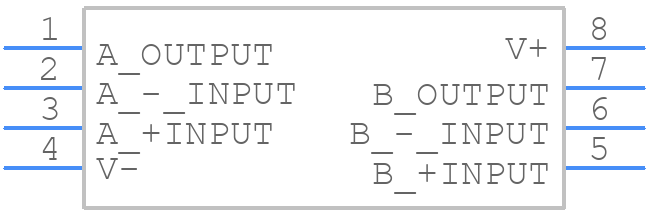

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4580E - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - SOP8 JEDEC 150mil(EMP8)
click to zoom
3D Models
NJM4580E - Nisshinbo  - 3D model - Small Outline Packages - SOP8 JEDEC 150mil(EMP8)
click to zoom

NJM4580E Details

  • Manufacturer Part Number:

    NJM4580E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    4.68

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Slew Rate-Nom:

    5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    31622.8

  • Width:

    3.9 mm

NJM4580E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4580E is 4.5V to 16V.
  • To ensure stability, it is recommended to use a bypass capacitor between the power supply pins (VCC and GND) and to keep the input impedance high.
  • The maximum power dissipation of NJM4580E is 500mW.
  • Yes, NJM4580E can operate in a temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C.
  • To reduce noise, use a low-pass filter at the input, keep the input impedance high, and use a decoupling capacitor between the power supply pins.
