NJM4580M - Nisshinbo

Description: Audio Amplifiers Dual

Download NJM4580M Model

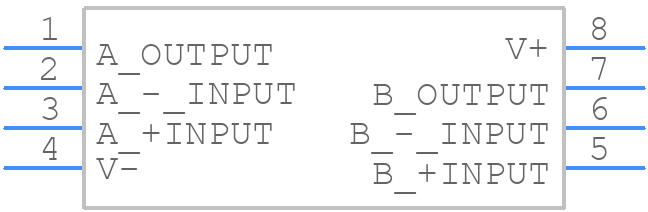

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM4580M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8
click to zoom
3D Models
NJM4580M - Nisshinbo  - 3D model - Small Outline Packages - DMP8
click to zoom

NJM4580M Details

  • Manufacturer Part Number:

    NJM4580M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    4.68

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Slew Rate-Nom:

    5 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    15000

  • Voltage Gain-Min:

    31622.8

  • Width:

    5 mm

NJM4580M Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4580M is 4.5V to 16V.
  • To ensure stability, it's recommended to use a bypass capacitor (e.g., 10nF to 100nF) between the VCC pin and GND, and to minimize the length of the input traces to reduce noise and oscillations.
  • The maximum power dissipation for NJM4580M is 500mW. It's essential to ensure that the device does not exceed this limit to prevent overheating and damage.
  • While NJM4580M can operate up to 125°C, it's recommended to derate the power dissipation accordingly to ensure reliable operation. Consult the datasheet for thermal resistance and power derating curves.
  • To prevent electrostatic discharge (ESD) damage, handle the device by the body or use an anti-static wrist strap. Ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the NJM4580M.
