NJM5532DD - Nisshinbo

Description: NJM5532DD Nisshinbo Micro Devices, Op Amp, 10MHz, 8-Pin PDIP

Download NJM5532DD Model

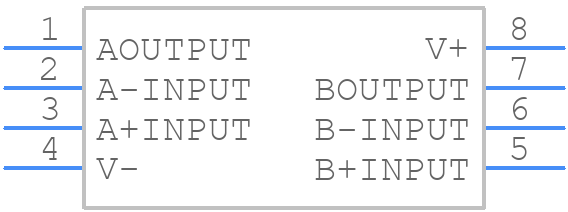

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM5532DD - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJM5532DD - Nisshinbo  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJM5532DD Details

  • Manufacturer Part Number:

    NJM5532DD

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.8 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    8.8 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    8 V/us

  • Supply Current-Max:

    16 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    14962.4

  • Wideband:

    NO

  • Width:

    7.62 mm

NJM5532DD Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM5532DD is 5V to 15V, with a typical voltage of 9V.
  • To ensure stability, it's recommended to use a bypass capacitor (e.g., 10uF) between the supply pins (VCC and VEE) and to keep the input impedance high (>1kΩ) to prevent oscillations.
  • The maximum power dissipation for NJM5532DD is 670mW, so it's essential to ensure that the device is properly heat-sinked and operated within the recommended temperature range (-40°C to 125°C).
  • While NJM5532DD can be used as a comparator, it's not recommended due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (3MHz). A dedicated comparator IC would be a better choice for high-speed or high-accuracy applications.
  • To reduce noise, use a low-ESR capacitor (e.g., ceramic or film capacitor) for decoupling, keep the circuit layout compact, and use shielding or guard rings to minimize electromagnetic interference (EMI).
