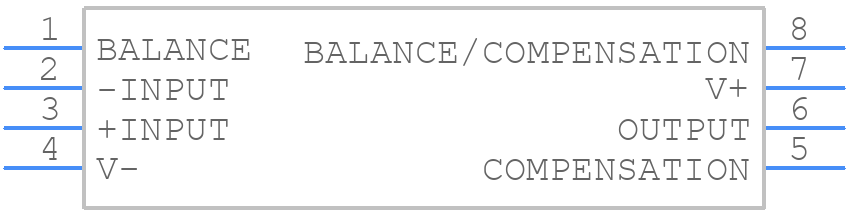

NJM5534D - Nisshinbo

NJM5534D Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for NJM5534D to minimize noise and thermal issues?
  A good PCB layout for NJM5534D should consider thermal management by placing the device near a thermal pad or heat sink, and minimizing the distance between the device and the output capacitors. Additionally, separating the analog and digital grounds, and using a star-ground configuration can help reduce noise.
• How do I ensure the stability of the NJM5534D op-amp in my circuit?
  To ensure stability, make sure to follow the recommended compensation capacitor values and placement, and avoid capacitive loads. Also, ensure that the gain and phase margins are sufficient, and the op-amp is not operated near its unity-gain bandwidth.
• What is the maximum power dissipation of NJM5534D, and how do I calculate it?
  The maximum power dissipation of NJM5534D is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
• Can I use NJM5534D as a unity-gain buffer, and what are the implications?
  Yes, NJM5534D can be used as a unity-gain buffer, but it may not be the best choice due to its limited bandwidth and gain-bandwidth product. Additionally, the device may oscillate or become unstable if not properly compensated. It's recommended to use a dedicated unity-gain buffer op-amp or a voltage follower configuration instead.
• How do I protect NJM5534D from overvoltage and ESD damage?
  To protect NJM5534D from overvoltage and ESD damage, use voltage clamping devices such as TVS diodes or zener diodes, and ensure that the input and output pins are not exposed to voltages beyond the recommended operating range. Additionally, follow proper ESD handling and storage procedures to prevent damage during manufacturing and assembly.
