A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the component placement and routing symmetrical can help to reduce thermal gradients.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, such as providing adequate heat sinking and thermal dissipation paths. Additionally, consider using thermal interface materials and ensuring that the device is operated within its specified temperature range.
The recommended soldering conditions for the NJM8532M-TE2 are: peak temperature of 260°C, soldering time of 10 seconds or less, and a soldering iron temperature of 350°C or less. It's also recommended to use a solder with a melting point of 217°C or higher.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded. Additionally, consider using ESD-protective packaging and handling materials, and to avoid touching the device's pins or exposed pads.
The recommended storage and handling conditions for the NJM8532M-TE2 are: storage temperature range of -40°C to 125°C, relative humidity of 60% or less, and avoidance of direct sunlight and moisture. It's also recommended to store the devices in their original packaging or in a dry, clean environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM8532M-TE2 Overview

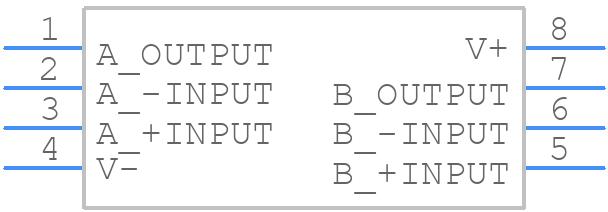

Use the download button to access the NJM8532M-TE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM85,
or try a keyword search, such as Operational Amplifiers
