NJU7034M - Nisshinbo

Description: General Purpose Amplifier 4 Circuit Rail-to-Rail 14-DMP

Download NJU7034M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

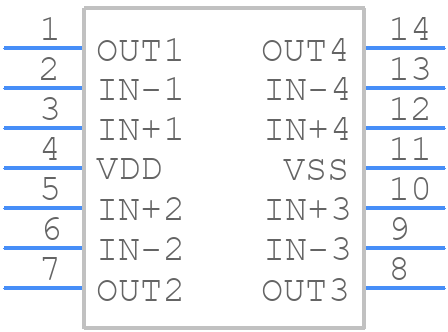

Symbol
NJU7034M - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
NJU7034M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP14
click to zoom
3D Models
NJU7034M - Nisshinbo - 3D model - Small Outline Packages - DMP14
click to zoom

NJU7034M Details

  • Manufacturer Part Number:

    NJU7034M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    5.22

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000001 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e6

  • Length:

    10 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1500

  • Voltage Gain-Min:

    10000

  • Width:

    5 mm

NJU7034M Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a ferrite bead or a 10nF capacitor to filter the power supply.
  • Monitor the junction temperature (Tj) and ensure it stays within the recommended range (-40°C to 125°C). Use a thermal pad or a heat sink if necessary. Also, ensure the power supply voltage (VCC) is within the recommended range (2.7V to 5.5V).
  • The recommended input impedance is 10kΩ or higher to minimize the input current and prevent signal distortion. Use a voltage follower or a buffer amplifier if the input impedance is lower than 10kΩ.
  • Yes, but with caution. The NJU7034M is rated for operation up to 125°C, but the accuracy and reliability may degrade at high temperatures. Consider using a heat sink or a thermal pad to maintain a safe operating temperature.
  • Check the power supply voltage, analog input signal, and clock frequency. Ensure the analog input signal is within the recommended range (0V to VCC) and the clock frequency is within the recommended range (100kHz to 1MHz). Use an oscilloscope to verify the analog input signal and the digital output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJU7034M Overview

Use the download button to access the NJU7034M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJU70, or try a keyword search, such as Operational Amplifiers

Parts related to NJU7034M

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

NJU7034M Alternates

Showing results

Image Part Number Model
Part Image NJU7034M-(T1) New Japan Radio Co Ltd

QUAD OP-AMP, 10000uV OFFSET-MAX, 1.5MHz BAND WIDTH, PDSO14, 0.250 INCH, PLASTIC, DMP-14
Part Image NJU7034M-(T2) New Japan Radio Co Ltd

QUAD OP-AMP, 10000uV OFFSET-MAX, 1.5MHz BAND WIDTH, PDSO14, 0.250 INCH, PLASTIC, DMP-14
Part Image NJU7034M(TE4) New Japan Radio Co Ltd

Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14
Part Image NJU7034M(T2) New Japan Radio Co Ltd

Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14
Part Image NJU7034M(T1) New Japan Radio Co Ltd

Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDSO14, DMP-14
For a full list of alternate parts for NJU7034M, check out Findchips.com
