NJU7043D footprint, schematic symbol and 3D model by Nisshinbo

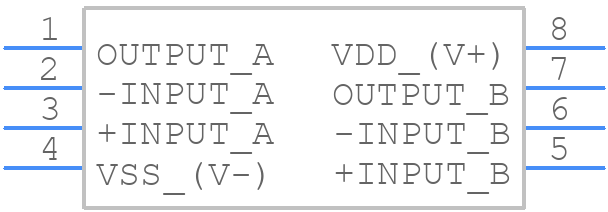

Symbol

click to zoom

PCB Footprints

NJU7043D - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8

click to zoom

3D Models

NJU7043D - Nisshinbo - 3D model - Dual-In-Line Packages - DIP8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NJU7043D
Part Number NJU7043D
Manufacturer Nisshinbo
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP8
Released Date Jun 30, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NJU7043D Details

Manufacturer Part Number:
NJU7043D
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
16 Weeks
Manufacturer:
Nisshinbo Micro Devices
YTEOL:
3
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Common-mode Reject Ratio-Nom:
60 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
10000 µV
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e6
Length:
8.8 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
4.7 mm
Slew Rate-Nom:
0.7 V/us
Supply Current-Max:
1 mA
Supply Voltage Limit-Max:
5.5 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN BISMUTH
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
800
Voltage Gain-Min:
3160
Width:
7.62 mm

NJU7043D Frequently Asked Questions (FAQs)

A good PCB layout for NJU7043D involves keeping the input and output traces short, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and keep the device away from high-frequency components.
To ensure proper biasing, make sure to follow the recommended voltage supply and current limit values specified in the datasheet. Also, use a stable voltage source and decouple the power supply lines with capacitors to minimize noise and ripple.
The NJU7043D can operate safely within a temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
While NJU7043D is designed to operate in a variety of environments, it's not recommended to use it in high-humidity environments (>80% RH) without proper protection. Consider using a moisture-resistant coating or conformal coating to protect the device from moisture.
To troubleshoot issues with NJU7043D, start by checking the power supply and decoupling capacitors. Ensure that the input and output traces are properly terminated and that the device is properly biased. Also, check for any signs of overheating or physical damage to the device.

Trust Checks

Expert Contribution

System Verified

Community Approved

NJU7043D Overview

Use the download button to access the NJU7043D schematic symbol, PCB footprint, and 3D model.
