Part Image

NJU7062D - JRC

Description: LOW INPUT OFFSET VOLTAGE C-MOS OPERATIONAL AMPLIFIER

Download NJU7062D Model

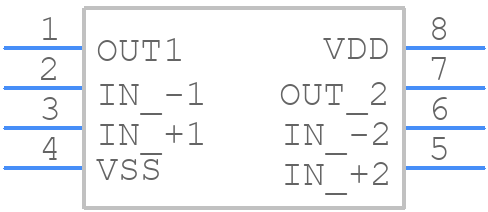

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJU7062D - JRC PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8
click to zoom
3D Models
NJU7062D - JRC  - 3D model - Dual-In-Line Packages - DIP8
click to zoom

NJU7062D Details

  • Manufacturer Part Number:

    NJU7062D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    New Japan Radio Co Ltd

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e6

  • Length:

    8.8 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    400

  • Voltage Gain-Min:

    10000

  • Width:

    7.62 mm

NJU7062D Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure that the output capacitor is properly sized and placed close to the IC. Also, use a low-ESR capacitor and a 1-2 ohm resistor in series with the output capacitor to prevent oscillation.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V to ensure reliable operation and prevent overheating.
  • Yes, NJU7062D is rated for operation up to 125°C, but the output current may decrease at high temperatures. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and placed. Use an oscilloscope to check for oscillations or noise on the output.
