Part Image

NJU7067M-TE2 - Nisshinbo

Description: Operational Amplifiers - Op Amps 18Vdd 14uA 4V to 16V 4mV 1pA 0.04V 90kHz

Download NJU7067M-TE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

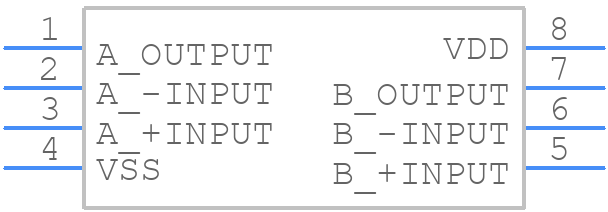

Symbol
NJU7067M-TE2 - Nisshinbo - PCB symbol
click to zoom

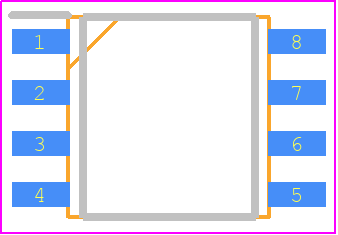

PCB Footprints
NJU7067M-TE2 - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8
click to zoom

NJU7067M-TE2 Details

  • Manufacturer Part Number:

    NJU7067M-TE2

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJU7067M-TE2 Overview

Use the download button to access the NJU7067M-TE2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NJU70, or try a keyword search, such as Operational Amplifiers
