Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NJW1142A
- Part Number NJW1142A
- Manufacturer Nisshinbo
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SSOP32
- Released Date Feb 9, 2023
- Last Modified Date Apr 13, 2026 10:49 PM UTC
- Pinout / Pin List Click Here (Member Only)
NJW1142A Details
-
Manufacturer Part Number:
NJW1142A
-
Manufacturer:
Nisshinbo Micro Devices
Trust Checks
Community Provided
System Verified
Community Approved
NJW1142A Overview

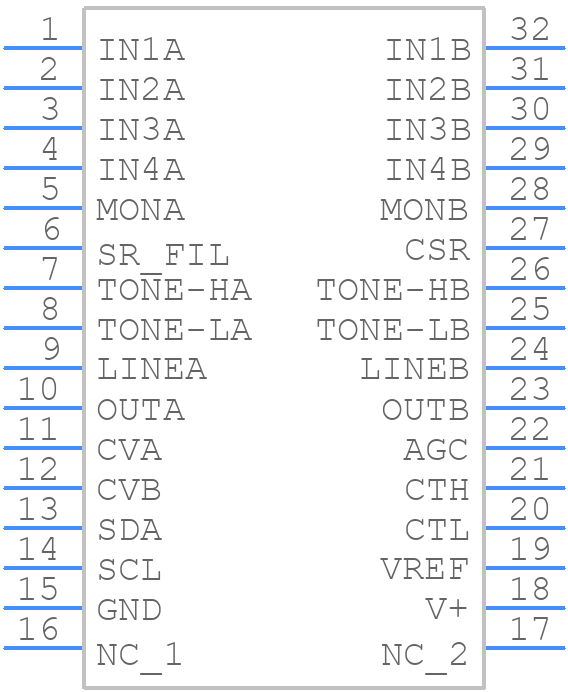

Use the download button to access the NJW1142A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NJW11,
or try a keyword search, such as Audio Control ICs
