A recommended PCB layout for NJW4615AF1-TE1 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's essential to follow the manufacturer's recommended pinout and layout guidelines to minimize electromagnetic interference (EMI) and ensure proper heat dissipation.
To ensure the reliability and longevity of NJW4615AF1-TE1 in high-temperature applications, it's crucial to follow the recommended operating temperature range (up to 125°C) and derate the device's power consumption accordingly. Additionally, using a heat sink or thermal pad can help to dissipate heat effectively, and ensuring good airflow around the device can also help to reduce thermal stress.
NJW4615AF1-TE1 is a sensitive electronic component that requires proper ESD protection and handling precautions. It's essential to handle the device in an ESD-controlled environment, use anti-static wrist straps or mats, and avoid touching the device's pins or leads. Additionally, the device should be stored in its original packaging or an anti-static bag when not in use.
Yes, NJW4615AF1-TE1 can be used in automotive applications. The device meets the requirements of the AEC-Q100 standard, which ensures its reliability and performance in harsh automotive environments. Additionally, Nisshinbo Micro Devices provides PPAP (Production Part Approval Process) documentation and supports IATF 16949 certification for automotive applications.
The recommended soldering profile for NJW4615AF1-TE1 involves a peak temperature of 260°C, with a soldering time of 10-30 seconds. It's essential to follow the manufacturer's recommended soldering profile to prevent damage to the device and ensure reliable connections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJW4615AF1-TE1 Overview

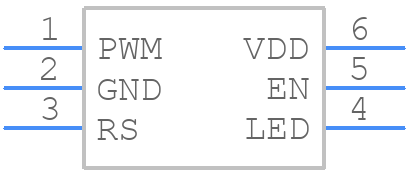

Use the download button to access the NJW4615AF1-TE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJW46,
or try a keyword search, such as Display Drivers
