The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
The NJW4814MLE-TE1 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. Use ESD-safe equipment, wear ESD-protective clothing, and ensure the device is properly grounded during handling and assembly.
The NJW4814MLE-TE1 is an automotive-grade device, but it's essential to ensure that it meets the specific requirements of your application. Check the device's AEC-Q100 qualification and follow the recommended operating conditions, testing, and validation procedures for automotive applications.
The recommended storage condition for the NJW4814MLE-TE1 is in a dry, cool place, away from direct sunlight and moisture. Store the devices in their original packaging or in a sealed bag with desiccant to maintain a relative humidity of 50% or less.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJW4814MLE-TE1 Overview

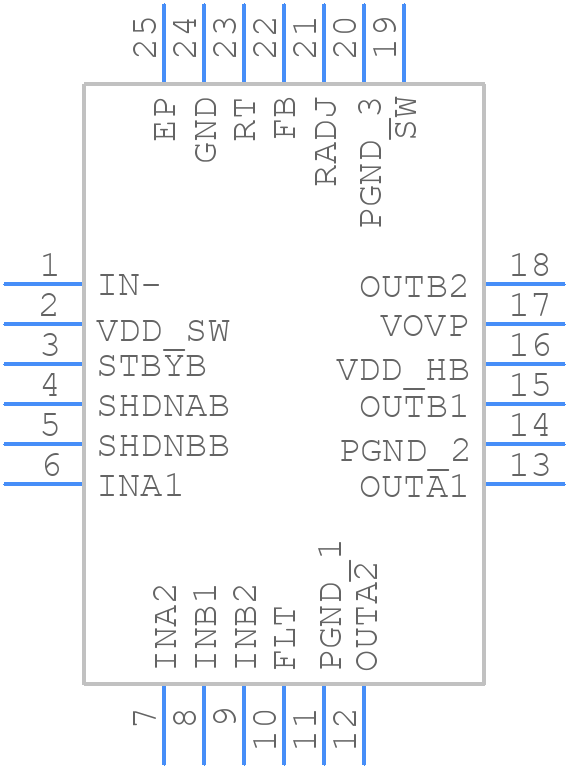

Use the download button to access the NJW4814MLE-TE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJW48,
or try a keyword search, such as Peripheral Drivers
