NL17SG125P5T5G - onsemi

Description: Wide Operating VCC Range: 0.9 V to 3.6 V; High Speed: tPD = 2.4 ns (Typ) at VCC = 3.0 V, CL = 15 pF; Low Power Dissipation: ICC = 0.5 uA (Max) at TA = 25C; 4.6 V Overvoltage Tolerant (OVT) Input Pins; UltraSmall Packages; These are PbFree and HalideFree Devices

Download NL17SG125P5T5G Model

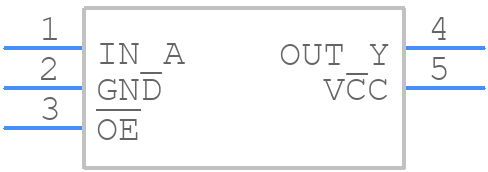

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL17SG125P5T5G - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-953 CASE 527AE ISSUE E
click to zoom
3D Models
NL17SG125P5T5G - onsemi  - 3D model - SO Transistor Flat Lead - SOT-953 CASE 527AE ISSUE E
click to zoom

NL17SG125P5T5G Details

  • Manufacturer Part Number:

    NL17SG125P5T5G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-953 1x0.8, 0.35P

  • Pin Count:

    5

  • Manufacturer Package Code:

    527AE

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    17SG

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Length:

    1 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOF

  • Package Equivalence Code:

    FL6,.03,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    20 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    19.6 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.8 mm

NL17SG125P5T5G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power handling capabilities according to the temperature range.
  • To prevent ESD damage, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins, and to follow proper handling and storage procedures to prevent static electricity buildup.
  • Yes, the NL17SG125P5T5G is qualified for automotive and high-reliability applications, but it's essential to review the device's AEC-Q101 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • It's recommended to follow the standard soldering and assembly techniques for surface-mount devices, using a soldering iron with a temperature range of 220°C to 240°C, and to avoid applying excessive force or pressure during assembly to prevent damage to the device.
