NL17SZ74MQ1TCG-Q - onsemi

Description: Flip Flop 1 Element D-Type 1 Bit Positive Edge 8-UFQFN

Download NL17SZ74MQ1TCG-Q Model

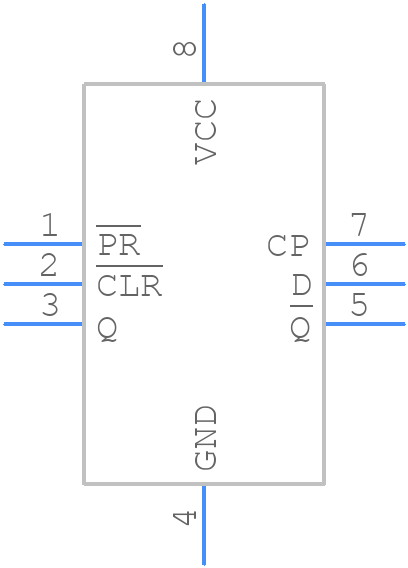

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL17SZ74MQ1TCG-Q - onsemi PCB footprint - Other - Other - NL17SZ74MQ1TCG-Q-6
click to zoom
3D Models
NL17SZ74MQ1TCG-Q - onsemi  - 3D model - Other - NL17SZ74MQ1TCG-Q-6
click to zoom

NL17SZ74MQ1TCG-Q Details

  • Manufacturer Part Number:

    NL17SZ74MQ1TCG-Q

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Manufacturer Package Code:

    523AN

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    175000000 Hz

  • Max I(ol):

    0.032 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    0.01 mA

  • Prop. Delay@Nom-Sup:

    7.5 ns

  • Propagation Delay (tpd):

    13 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    1.6 mm

  • fmax-Min:

    250 MHz

NL17SZ74MQ1TCG-Q Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NL17SZ74MQ1TCG-Q is 1.65V to 3.6V.
  • It is recommended to power up VCC before VCCA, and power down VCCA before VCC to prevent latch-up and ensure proper operation.
  • The maximum allowable voltage on the input pins of NL17SZ74MQ1TCG-Q is VCC + 0.5V to prevent damage from electrostatic discharge.
  • It is recommended to use a 50-ohm termination resistor between the output pin and VCC, and a 50-ohm termination resistor between the output pin and GND to ensure proper signal integrity.
  • The maximum operating frequency for NL17SZ74MQ1TCG-Q is 100 MHz.
