NL3S22AHMUTAG footprint, schematic symbol and 3D model by onsemi

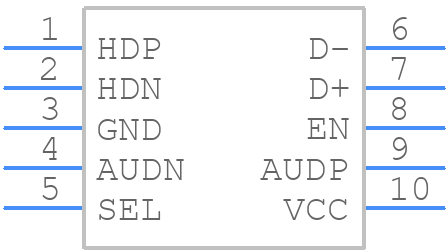

Symbol

click to zoom

PCB Footprints

NL3S22AHMUTAG - onsemi PCB footprint - Other - Other - UQFN10 1.4x1.8, 0.4P CASE 488AT ISSUE A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NL3S22AHMUTAG
Part Number NL3S22AHMUTAG
Manufacturer onsemi
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - UQFN10 1.4x1.8, 0.4P CASE 488AT ISSUE A
Released Date Mar 21, 2018
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NL3S22AHMUTAG Details

Manufacturer Part Number:
NL3S22AHMUTAG
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
UQFN-10
Package Description:
UQFN-10
Manufacturer Package Code:
488AT
Country Of Origin:
Thailand
HTS Code:
8542.39.00.60
Factory Lead Time:
111 Weeks
Date Of Intro:
2017-10-09
Manufacturer:
onsemi
YTEOL:
0
Analog IC - Other Type:
DPDT
JESD-30 Code:
R-XQCC-N10
JESD-609 Code:
e4
Length:
1.8 mm
Moisture Sensitivity Level:
1
Normal Position:
NO
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
10
Off-state Isolation-Nom:
25 dB
On-state Resistance Match-Nom:
0.2 Ω
On-state Resistance-Max (Ron):
6.63 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
3.7 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.4 mm

NL3S22AHMUTAG Frequently Asked Questions (FAQs)

A good PCB layout for the NL3S22AHMUTAG should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern around the device. A minimum of 2oz copper thickness is recommended. Refer to onsemi's application note AND8323/D for more details.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using a thermal interface material, and keeping the junction temperature (Tj) below the maximum rating of 150°C. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
The NL3S22AHMUTAG has an ESD rating of 2 kV human body model (HBM) and 150 V machine model (MM). To prevent ESD damage, handle the device with an anti-static wrist strap, mat, or workstation. Avoid touching the device pins or exposing them to static-prone environments. Use ESD-protective packaging and follow proper storage and handling procedures.
Yes, the NL3S22AHMUTAG is suitable for high-reliability and automotive applications. It's AEC-Q101 qualified and meets the requirements for automotive-grade devices. However, it's essential to follow the recommended operating conditions, design guidelines, and testing procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with the NL3S22AHMUTAG, start by reviewing the device's operating conditions, including voltage, current, and temperature. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult onsemi's application notes and technical support resources for guidance on troubleshooting and debugging.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NL3S22AHMUTAG Overview

Use the download button to access the NL3S22AHMUTAG schematic symbol and PCB footprint.
