NL3X5004MU2TAG - onsemi

Description: High 100 pF capacitive drive capability; High−Speed w/ 140 Mbps Guaranteed Date Rate for VCCA, VCCB >1.8 V; Wide VCCA, VCCB Operating Range: 0.9 V to 3.6 V; VCCA and VCCB are independent - VCCA may be greater than, equal to, or less than VCCB; -Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Low bit to bit skew; Overvoltage tolerant Enable and I/O pins; Nonpreferential Power up sequencing; Power Off protection; These

Download NL3X5004MU2TAG Model

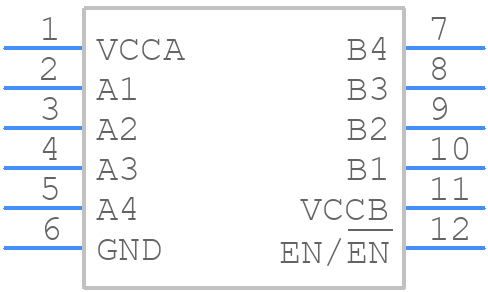

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL3X5004MU2TAG - onsemi PCB footprint - Other - Other - NL3X5004MU2TAG-7
click to zoom
3D Models
NL3X5004MU2TAG - onsemi  - 3D model - Other - NL3X5004MU2TAG-7
click to zoom

NL3X5004MU2TAG Details

  • Manufacturer Part Number:

    NL3X5004MU2TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-12

  • Package Description:

    UQFN-12

  • Manufacturer Package Code:

    523AE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Delay-Max:

    37 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XQCC-N12

  • Length:

    2 mm

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.06X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.1 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    0.9 V

  • Supply Voltage1-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.7 mm

NL3X5004MU2TAG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a heat sink if necessary, and consider derating the device's power handling capabilities. Also, ensure good thermal conductivity between the device and the heat sink or PCB.
  • The NL3X5004MU2TAG has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
  • Yes, the NL3X5004MU2TAG is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is manufactured using automotive-grade processes. However, ensure that you follow the recommended operating conditions and design guidelines for your specific application.
  • To troubleshoot issues with the internal voltage regulator, check the input voltage, output voltage, and current consumption. Verify that the device is properly powered and that the input voltage is within the recommended range. Use an oscilloscope to monitor the output voltage and current waveforms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NL3X5004MU2TAG Overview

Use the download button to access the NL3X5004MU2TAG schematic symbol, PCB footprint, and 3D model.
