- Part Number NL4MD-V-1
- Manufacturer Neutrik
- Pin Count 4
- Part Category Connector
- Package Category Other
- Footprint Name Other - NL4MD-V-1-1
- Released Date Mar 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NL4MD-V-1 Details
-
Manufacturer Part Number:
NL4MD-V-1
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
YTEOL:
0
-
Body Breadth:
1.024 inch
-
Body Depth:
1.043 inch
-
Body Length:
1.22 inch
-
Body/Shell Style:
RECEPTACLE
-
Configuration:
1X1 VERTICAL
NL4MD-V-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the NL4MD-V-1 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the hex nuts.
-
Yes, the NL4MD-V-1 connector is suitable for outdoor use due to its rugged design and IP65 rating, which provides protection against dust and water ingress.
-
Yes, the NL4MD-V-1 connector is designed to be compatible with other Neutrik products, such as their speakON connectors and adapters, allowing for a wide range of connectivity options.
-
The maximum cable diameter that can be used with the NL4MD-V-1 connector is 15 mm (0.59 in) for the cable clamp, and 12 mm (0.47 in) for the cable gland.
-
Yes, the NL4MD-V-1 connector is UL certified, meeting the safety standards for electrical connectors in the United States and Canada.
Trust Checks
Expert Contribution
System Verified
Community Approved
NL4MD-V-1 Overview

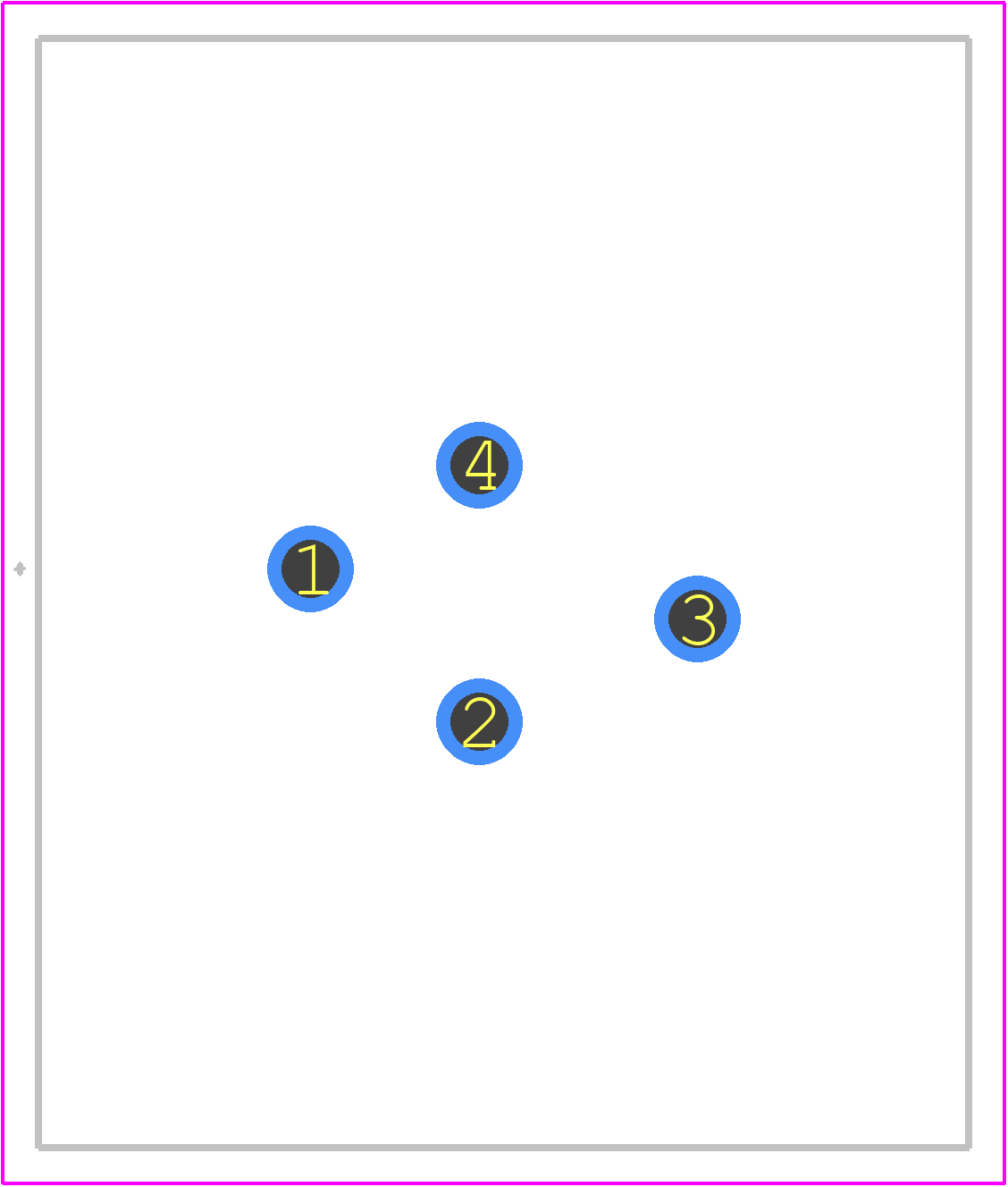

Use the download button to access the NL4MD-V-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NL4MD,
or try a keyword search, such as Audio/RCA Connectors
