- Part Number NL565050T-472J-PF
- Manufacturer TDK
- Pin Count 2
- Part Category Inductor
- Package Category Inductor Moulded

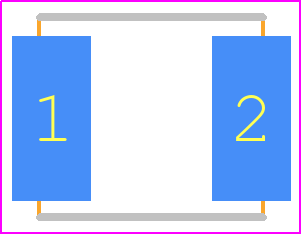

- Footprint Name Inductor Moulded - NL565050T-472J-PF
- Released Date Jun 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NL565050T-472J-PF Details
-
Manufacturer Part Number:
NL565050T-472J-PF
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
TDK Corporation
-
YTEOL:
0
-
Case/Size Code:
2220
-
Construction:
Chip
NL565050T-472J-PF Frequently Asked Questions (FAQs)
-
The recommended land pattern for NL565050T-472J-PF is a rectangular pad with a size of 5.5mm x 5.5mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask opening of 4.5mm x 4.5mm.
-
The NL565050T-472J-PF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management during PCB design. This includes providing adequate spacing between components, using thermal vias, and selecting a suitable PCB material with high thermal conductivity.
-
The self-resonant frequency (SRF) of the NL565050T-472J-PF is not explicitly stated in the datasheet. However, based on the inductor's characteristics, the SRF is typically in the range of 100-200 MHz. It's essential to consider the SRF when designing the circuit to avoid unwanted resonances.
-
The NL565050T-472J-PF is a surface-mount device (SMD) and is designed to withstand normal vibration and shock. However, it's essential to consider the specific vibration and shock requirements of your application. If your application involves extreme vibration or shock, you may need to consider additional mechanical support or a different component.
-
To ensure the reliability of the NL565050T-472J-PF in a high-reliability application, follow proper PCB design and assembly guidelines, including using a suitable soldering process, controlling the soldering temperature, and ensuring adequate cleaning and inspection. Additionally, consider implementing a robust testing and validation process to detect any potential defects or failures.
