NLA9306MU3TCG - onsemi

Description: 2-bit Bidirectional Translator for SDA and SCL Lines in MixedMode I2C Bus Applications; StandardMode, FastMode, and FastMode Plus I2C Bus and SMBus Compatible; Less Than 1.5 ns Maximum Propagation Delay to Accommodate StandardMode and FastMode I2C Bus Devices and Multiple Masters; Allows Voltage Level Translation Between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2) 1.2 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias(ref)(2) 1.8 V Vref(1) and 3.3 V or 5 V Vbias(ref)(2) 2.5 V Vref(1) and 5 V Vbi

Download NLA9306MU3TCG Model

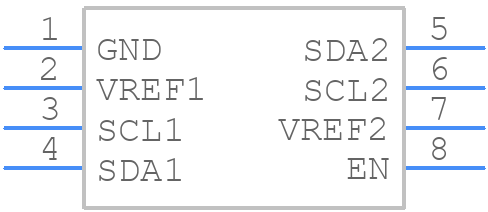

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLA9306MU3TCG - onsemi PCB footprint - Other - Other - NLA9306MU3TCG-1
click to zoom
3D Models
NLA9306MU3TCG - onsemi  - 3D model - Other - NLA9306MU3TCG-1
click to zoom

NLA9306MU3TCG Details

  • Manufacturer Part Number:

    NLA9306MU3TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517BZ

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Delay-Max:

    3.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.04,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Nom:

    1 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.45 mm
