Part Image

NLA9535CDTR2G-Q - onsemi

Description: VDD Operating Range: 1.65 V to 5.5 V; SDA Sink Capability: 30 mA; No Glitch on Powerup; Internal Poweron Reset; 64 Programmable Slave Addresses using Three Address Pins; 16 I/O Pins which Default to 16 Inputs; 5.5 V Tolerant I/Os; Polarity Inversion Register; Active LOW Interrupt Output; Low Standby Current; Noise Filter on SCL/SDA Inputs

Download NLA9535CDTR2G-Q Model

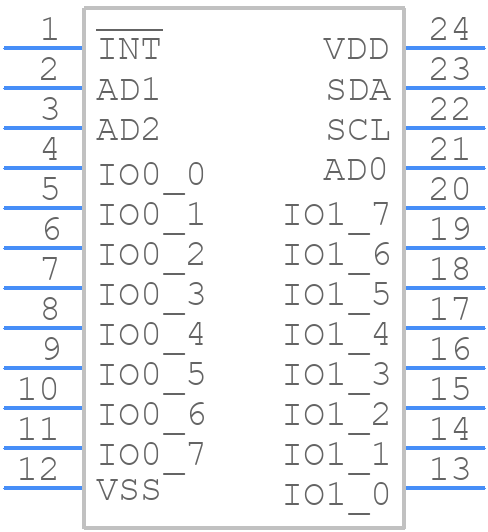

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLA9535CDTR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24 DT CASE 948H ISSUE B
click to zoom
3D Models
NLA9535CDTR2G-Q - onsemi  - 3D model - Small Outline Packages - TSSOP24 DT CASE 948H ISSUE B
click to zoom

NLA9535CDTR2G-Q Details

  • Manufacturer Part Number:

    NLA9535CDTR2G-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLA9535CDTR2G-Q Overview

Use the download button to access the NLA9535CDTR2G-Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLA95, or try a keyword search, such as Parallel IO Ports
