NLAS2066USG - onsemi

Description: Dual Single Pole Single Throw Analog Switch

Download NLAS2066USG Model

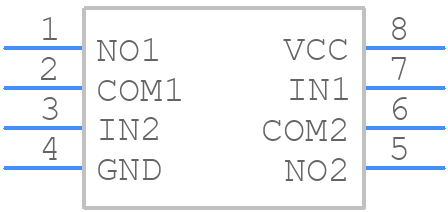

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLAS2066USG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - US8 US SUFFIIX CASE 493-02 ISSUE B
click to zoom
3D Models
NLAS2066USG - onsemi  - 3D model - Small Outline Packages - US8 US SUFFIIX CASE 493-02 ISSUE B
click to zoom

NLAS2066USG Details

  • Manufacturer Part Number:

    NLAS2066USG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    US8

  • Package Description:

    US-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    493-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    73 dB

  • On-state Resistance Match-Nom:

    1.3 Ω

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    11 ns

  • Switch-on Time-Max:

    10 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NLAS2066USG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
  • Yes, but ensure the device is properly heat-sunk and the PCB is designed to handle high currents. Follow the recommended layout guidelines and thermal management techniques.
  • Use a voltage regulator or a TVS diode to protect against overvoltage. Add a current-sensing resistor and a fuse or a PTC resettable fuse to protect against overcurrent.
