NLAS2750MUTAG - onsemi

Description: Obsolete - Mux / Demux Analog Switch

Download NLAS2750MUTAG Model

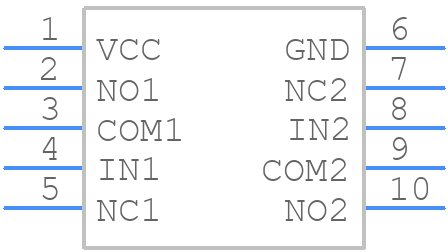

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLAS2750MUTAG - onsemi PCB footprint - Other - Other - UQFN10 1.4x1.8, 0.4P CASE 488AT ISSUE A
click to zoom

NLAS2750MUTAG Details

  • Manufacturer Part Number:

    NLAS2750MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    10 Pin UQFN, 1.4x1.8, 0.4P

  • Package Description:

    10 Pin UQFN, 1.4x1.8, 0.4P-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    488AT

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    58 dB

  • On-state Resistance Match-Nom:

    0.1 Ω

  • On-state Resistance-Max (Ron):

    1.3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Signal Current-Max:

    0.25 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    130 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

NLAS2750MUTAG Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the NLAS2750MUTAG is 150°C, as specified in the datasheet. However, it's recommended to derate the power dissipation to ensure reliable operation.
  • To ensure proper biasing, ensure the gate-source voltage (Vgs) is within the recommended range of 4-10V. Additionally, use a gate resistor (Rg) to limit the gate current and prevent oscillations.
  • To minimize parasitic inductance, use a compact PCB layout with short, wide traces for the drain, source, and gate connections. Keep the gate trace as short as possible and use a ground plane to reduce inductance.
  • Yes, the NLAS2750MUTAG can be used in high-frequency switching applications up to 1 MHz. However, ensure proper PCB layout, decoupling, and gate drive design to minimize ringing and oscillations.
  • To protect the NLAS2750MUTAG from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the PCB has ESD protection components, such as TVS diodes or ESD protection arrays, and follow proper handling and storage procedures.
