A good PCB layout for the NLAS324USG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The input voltage should be within the recommended range of 2.7V to 5.5V. Additionally, ensure that the input and output capacitors are properly sized and placed close to the device.
The maximum power dissipation of the NLAS324USG is 250mW. However, this value can be affected by the operating temperature, voltage, and current. It's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits.
The NLAS324USG is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the temperature coefficient and ensure the device is properly heat-sinked and cooled in high-temperature applications.
To troubleshoot issues with the NLAS324USG, start by verifying the power supply voltage, input and output signals, and PCB layout. Check for any signs of overheating, and ensure that the device is properly biased and terminated. Use oscilloscopes and signal generators to debug the circuit and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLAS324USG Overview

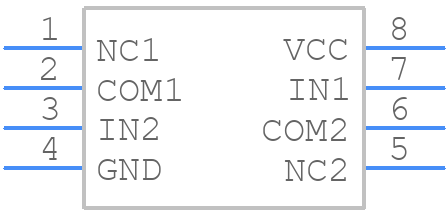

Use the download button to access the NLAS324USG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLAS3,
or try a keyword search, such as Multiplexers or Switches
