NLAS3899BMNTWG - onsemi

Description: ON SEMICONDUCTOR - NLAS3899BMNTWG - ANALOGUE SWITCH, DUAL, DPDT, 4R, QFN-16

Download NLAS3899BMNTWG Model

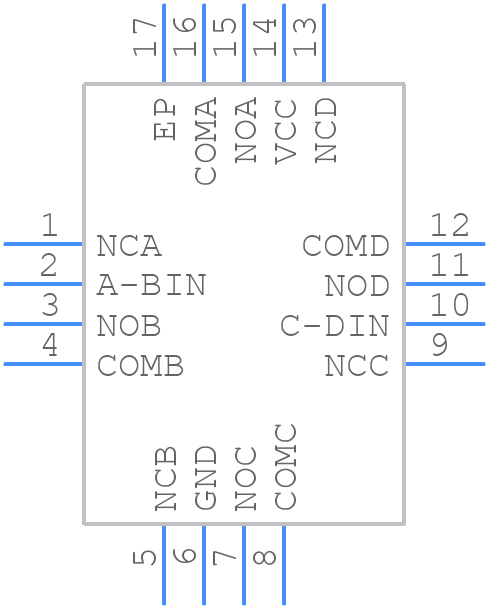

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLAS3899BMNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P--
click to zoom
3D Models
NLAS3899BMNTWG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P--
click to zoom

NLAS3899BMNTWG Details

  • Manufacturer Part Number:

    NLAS3899BMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN16 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485AE

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    67 dB

  • On-state Resistance Match-Nom:

    0.8 Ω

  • On-state Resistance-Max (Ron):

    3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    40 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NLAS3899BMNTWG Frequently Asked Questions (FAQs)

  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for optimal performance and to prevent overheating.
  • To ensure a stable output voltage, use a minimum output capacitance of 10uF with an ESR of 1 ohm or less, and keep the input voltage ripple below 1V.
  • A minimum input capacitance of 1uF is recommended to ensure stable operation, but 2.2uF or higher is recommended for optimal performance.
  • The NLAS3899BMNTWG is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT. Ensure the calculated PD is within the specified maximum power dissipation of 1.5W.
