A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Keep the thermal path short and use multiple vias to reduce thermal resistance.
Monitor the device's voltage, current, and temperature to prevent operation outside the SOA. Use a thermal management strategy and ensure the device is not exposed to excessive voltage or current stress.
The NLAS4684MNR2G has internal ESD protection, but it's still important to follow proper ESD handling procedures during assembly and use ESD-protective packaging. Additionally, consider adding external ESD protection devices if the application requires it.
Choose a gate resistor value that balances switching speed and power loss. A higher value reduces power loss but increases switching time. A lower value increases switching speed but increases power loss. Typical values range from 10 Ω to 1 kΩ.
To parallel devices, ensure each device has its own gate resistor and a common gate voltage source. Balance the current sharing by selecting devices with similar characteristics and using a common thermal management strategy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLAS4684MNR2G Overview

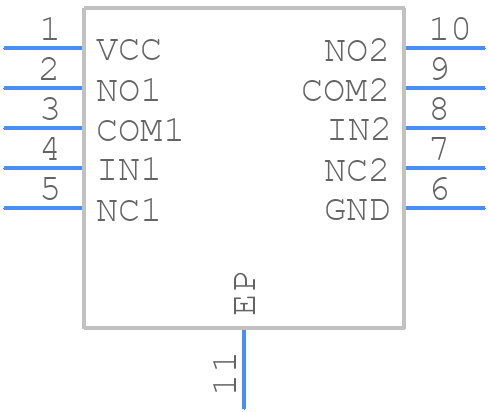

Use the download button to access the NLAS4684MNR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLAS4,
or try a keyword search, such as Multiplexers or Switches
