NLAS5223MNR2G - onsemi

Description: Analogue Switch ICs DUAL SPDT ULTRA-LOW RON S

Download NLAS5223MNR2G Model

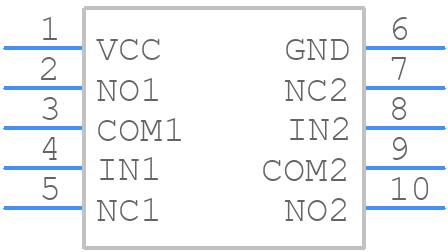

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLAS5223MNR2G - onsemi PCB footprint - Other - Other - WQFN−10 CASE 488AQ
click to zoom
3D Models
NLAS5223MNR2G - onsemi  - 3D model - Other - WQFN−10 CASE 488AQ
click to zoom

NLAS5223MNR2G Details

  • Manufacturer Part Number:

    NLAS5223MNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WQFN10 1.4 x 1.8, 0.4mm Pitch

  • Package Description:

    WQFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    488AQ

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    0.05 Ω

  • On-state Resistance-Max (Ron):

    0.3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.3 A

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    30 ns

  • Switch-on Time-Max:

    50 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

NLAS5223MNR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the IC is recommended. Keep the input and output capacitors close to the IC, and use a wide trace for the power paths.
  • Select an inductor with a saturation current rating above the peak current (2.3A), a low DCR (less than 100 mΩ), and a suitable inductance value (e.g., 1.5 μH to 3.3 μH) to achieve the desired output voltage ripple.
  • Use a low-ESR, X5R or X7R ceramic capacitor with a value between 4.7 μF to 10 μF, and a voltage rating above the maximum input voltage (23V).
  • Ensure the output capacitor has a low ESR, and the output voltage is within the recommended range (0.8V to 12V). Also, add a 10 nF to 22 nF capacitor between the FB pin and GND to improve stability.
  • The NLAS5223MNR2G can operate reliably up to 85°C ambient temperature, but derating may be necessary for high-power applications or high-temperature environments.
