- Part Number NLC565050T-391K-PF
- Manufacturer TDK
- Pin Count 2
- Part Category Inductor
- Package Category Inductor Moulded

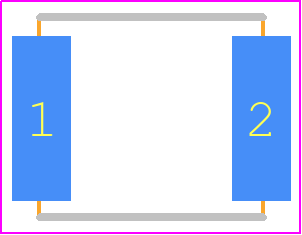

- Footprint Name Inductor Moulded - NL565050T_2021
- Released Date Jun 24, 2021
- Last Modified Date Oct 28, 2023 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
NLC565050T-391K-PF Details
-
Manufacturer Part Number:
NLC565050T-391K-PF
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Manufacturer:
TDK Corporation
-
YTEOL:
0
-
Case/Size Code:
2220
-
Construction:
Chip
NLC565050T-391K-PF Frequently Asked Questions (FAQs)
-
The recommended land pattern for NLC565050T-391K-PF can be found in the TDK Corporation's recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
-
While the NLC565050T-391K-PF is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the component's performance and reliability in high-temperature environments. Additionally, it's recommended to consult with TDK Corporation's application engineers or technical support for specific guidance on using the component in extreme temperature conditions.
-
The NLC565050T-391K-PF is a moisture-sensitive device, and it's essential to follow proper handling and storage procedures to prevent damage. This includes storing the components in a dry, nitrogen-filled package, and following the recommended baking and soldering procedures outlined in the datasheet or TDK Corporation's application notes.
-
The recommended soldering profile for NLC565050T-391K-PF can be found in the datasheet or TDK Corporation's application notes. The profile typically includes temperature and time parameters for peak temperature, dwell time, and cooling rate to ensure optimal solder joint quality and component reliability.
-
The NLC565050T-391K-PF is an automotive-grade component that meets the AEC-Q200 qualification requirements. However, it's essential to ensure that the component is used within its specified operating conditions and that the design meets all the necessary requirements for AEC-Q200 qualification, including testing and validation.
