NLDD-700H - Mean Well

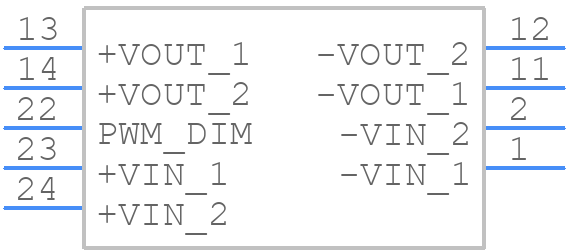

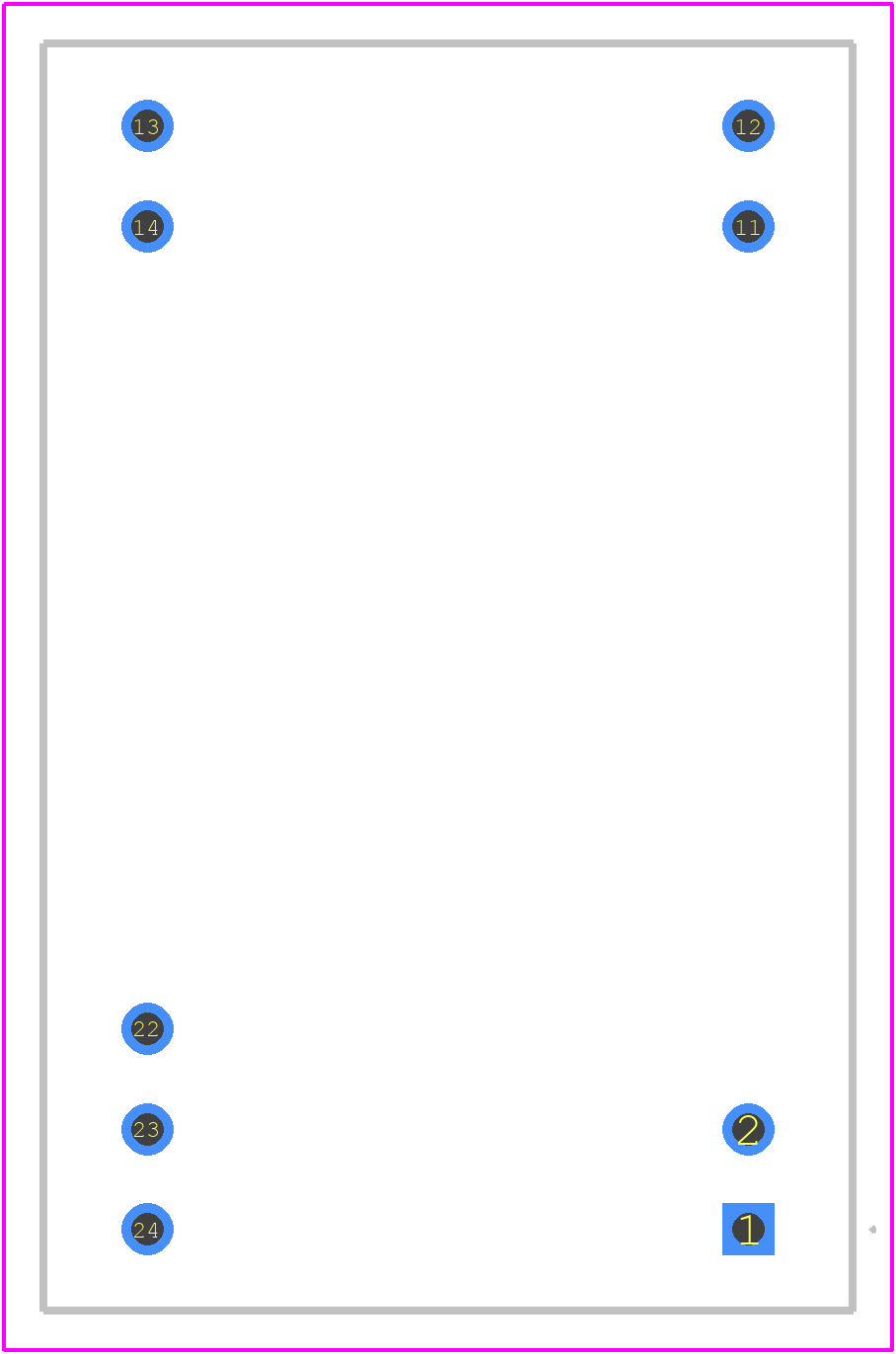

NLDD-700H Details

• Manufacturer Part Number:

  NLDD-700H

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-24/9

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Additional Feature:

  ALSO HAS TRAY PACKING METHOD WITH 40 PCS

• Analog IC - Other Type:

  DC-DC LED POWER SUPPLY MODULE

• Approvals:

  BS, EAC, EN, IEC, UL

• Efficiency (Main Output):

  96%

• Input Voltage-Max:

  56 V

• Input Voltage-Min:

  10 V

• Input Voltage-Nom:

  36 V

• JESD-30 Code:

  R-XDMA-P9

• Length:

  32.1 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  50 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.7 A

• Output Voltage-Max:

  52 V

• Output Voltage-Min:

  6 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,9/24LEAD,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER TEMPERATURE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  13.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  36.4 W

• Trim/Adjustable Output:

  YES

• Width:

  20.5 mm
