NLHV4051DR2G - onsemi

Description: Triple Diode Protection on Control Inputs; Switch Function is Break Before Make; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Analog Voltage Range (VDD - VEE) = 3.0 to 18 V Note: VEE must be <= VSS; Linearized Transfer Characteristics; Low-noise - 12 nV/sqrt.Cycle, f <= 1.0 kHz Typical; Pin-for-Pin Replacement for CD4051, CD4052, and CD4053; For 4PDT Switch, See MC14551B; For Lower RON, Use the HC4051, HC4052, or HC4053 High-Speed CMOS Devices

Download NLHV4051DR2G Model

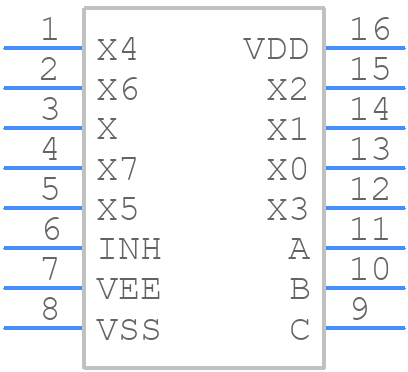

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLHV4051DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NLHV4051DR2G - onsemi  - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NLHV4051DR2G Details

  • Manufacturer Part Number:

    NLHV4051DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-12-16

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    25 Ω

  • On-state Resistance-Max (Ron):

    1050 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    90 ns

  • Switch-on Time-Max:

    90 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NLHV4051DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLHV4051DR2G is 1.65V to 5.5V, although it can operate down to 1.5V with reduced performance.
  • To ensure reliable switching, it's essential to follow the recommended switching frequency, ensure proper power supply decoupling, and minimize signal ringing and overshoot.
  • The maximum current rating for each channel of NLHV4051DR2G is 25mA, although it's recommended to limit the current to 10mA for reliable operation.
  • Yes, NLHV4051DR2G can be used as a level shifter, but it's essential to ensure that the input voltage is within the recommended operating range and that the output voltage is within the specified range for the target device.
  • NLHV4051DR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage.
