NLSX3018DTR2G - onsemi

Description: Wide Operating Range 1.3V to 4.5V; High-Speed with 100 Mb/s Guaranteed Data Rate for VL > 1.6V; Overvoltage Toerant Enable and I/O Pins; Small Packaging: 4.0 mm x 2.0 mm UQFN20

Download NLSX3018DTR2G Model

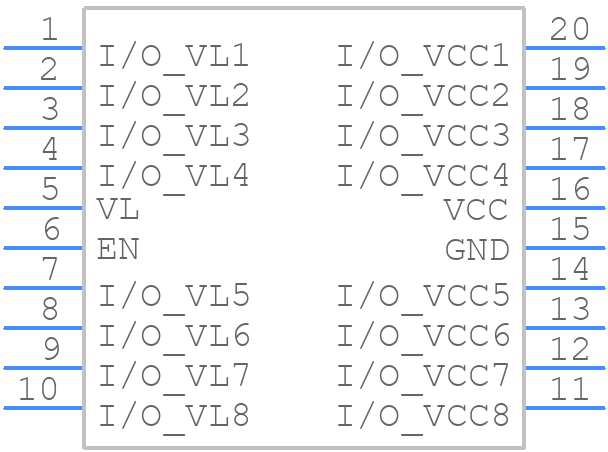

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

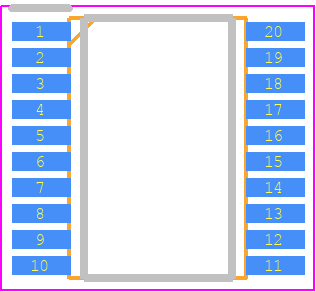

NLSX3018DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-20
click to zoom
3D Models
NLSX3018DTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP-20
click to zoom

NLSX3018DTR2G Details

  • Manufacturer Part Number:

    NLSX3018DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP 20 LEAD

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    9.48

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    3018

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    9.3 ns

  • Propagation Delay (tpd):

    9.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLSX3018DTR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's current rating at high temperatures.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
  • Yes, but ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI). Follow the recommended PCB layout and use a suitable layout for the switching node.
  • Use a TVS diode or a transient voltage suppressor (TVS) to protect the device from EOS. Ensure that the TVS is rated for the maximum voltage and current of the application.
