NLSX3018DWR2G - onsemi

Description: Wide Operating Range 1.3V to 4.5V; High-Speed with 100 Mb/s Guaranteed Data Rate for VL > 1.6V; Overvoltage Toerant Enable and I/O Pins; Small Packaging: 4.0 mm x 2.0 mm UQFN20

Download NLSX3018DWR2G Model

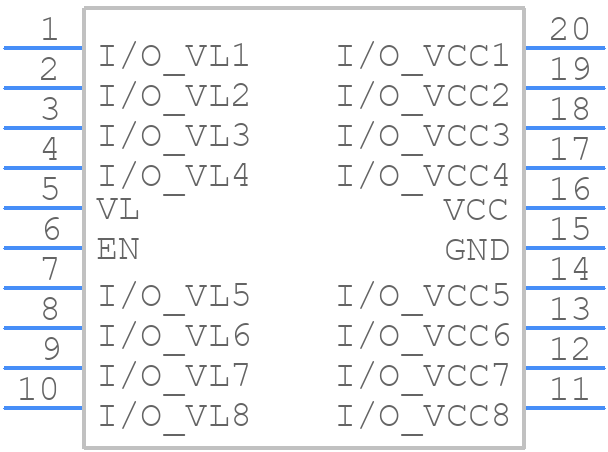

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX3018DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom
3D Models
NLSX3018DWR2G - onsemi  - 3D model - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom

NLSX3018DWR2G Details

  • Manufacturer Part Number:

    NLSX3018DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-20 WB

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    751D-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    3018

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    9.3 ns

  • Propagation Delay (tpd):

    9.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

NLSX3018DWR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the device, and using a thermal pad on the bottom of the package. Additionally, keeping the PCB traces away from the device and using a heat sink can help to improve thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the device's thermal derating guidelines, use a heat sink, and ensure good airflow around the device. Additionally, selecting components with high-temperature ratings and using thermal interface materials can help to improve reliability.
  • The recommended soldering conditions for the NLSX3018DWR2G involve using a peak reflow temperature of 260°C, a soldering time of 10-30 seconds, and a soldering method that meets the JEDEC J-STD-020 standard.
  • To handle ESD protection for the NLSX3018DWR2G, it is recommended to follow proper ESD handling procedures, use ESD-protective packaging and storage, and implement ESD protection circuits in the design. Additionally, using ESD-protected devices and following the device's ESD rating guidelines can help to prevent damage.
  • The recommended storage and handling conditions for the NLSX3018DWR2G involve storing the devices in their original packaging, keeping them away from moisture and direct sunlight, and handling them in an ESD-protected environment. The devices should be stored at a temperature range of -40°C to 125°C and a humidity level of 60% or less.
