NLSX4014DTR2G - onsemi

Description: Wide HighSide VCC Operating Range: 1.3 V to 4.5 V; Wide LowSide VL Operating Range: 0.9 V to (VCC - 0.4) V; HighSpeed with 100 Mb/s Guaranteed Date Rate for VL > 1.6 V; Low Bit - to - Bit Skew; Overvoltage Tolerant Enable and I/O Pins; Non - preferential Powerup Sequencing; Small packaging: 1.7 mm x 2.0 mm UQFN12

Download NLSX4014DTR2G Model

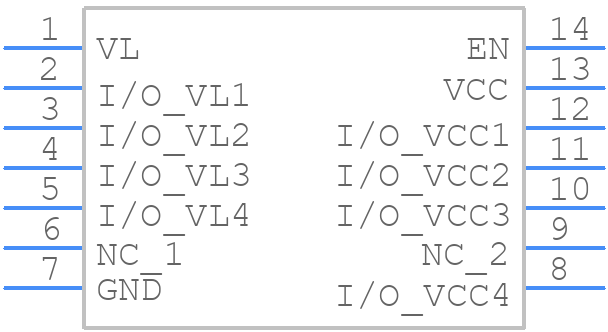

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX4014DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 CASE 948G ISSUE C
click to zoom
3D Models
NLSX4014DTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−14 CASE 948G ISSUE C
click to zoom

NLSX4014DTR2G Details

  • Manufacturer Part Number:

    NLSX4014DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    9.3 ns

  • Propagation Delay (tpd):

    9.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.3 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLSX4014DTR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX4014DTR2G involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 2.7V to 5.5V. Additionally, ensure that the input voltage is stable and free of noise.
  • The maximum current rating of the NLSX4014DTR2G is 1A per channel, with a total current rating of 2A for both channels combined. However, it's recommended to derate the current based on the ambient temperature and the PCB's thermal design.
  • To protect the NLSX4014DTR2G from ESD and overvoltage, use ESD protection devices such as TVS diodes or ESD arrays on the input lines. Additionally, use a voltage regulator or a voltage limiter to prevent overvoltage conditions. Ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
  • The recommended operating temperature range for the NLSX4014DTR2G is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
