NLSX4014MUTAG - onsemi

Description: Wide HighSide VCC Operating Range: 1.3 V to 4.5 V; Wide LowSide VL Operating Range: 0.9 V to (VCC - 0.4) V; HighSpeed with 100 Mb/s Guaranteed Date Rate for VL > 1.6 V; Low Bit - to - Bit Skew; Overvoltage Tolerant Enable and I/O Pins; Non - preferential Powerup Sequencing; Small packaging: 1.7 mm x 2.0 mm UQFN12

Download NLSX4014MUTAG Model

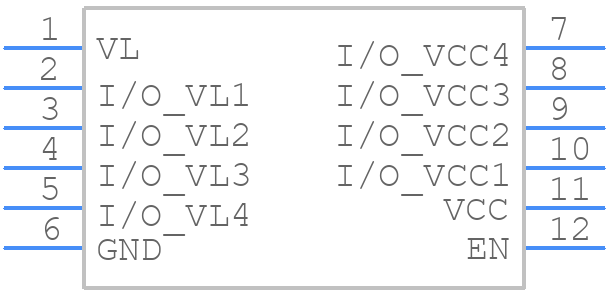

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX4014MUTAG - onsemi PCB footprint - Other - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE ISSUE A
click to zoom
3D Models
NLSX4014MUTAG - onsemi  - 3D model - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE ISSUE A
click to zoom

NLSX4014MUTAG Details

  • Manufacturer Part Number:

    NLSX4014MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UQFN12 2.0x1.7, 0.4P

  • Package Description:

    UQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    523AE

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    9.3 ns

  • Propagation Delay (tpd):

    9.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.3 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm

NLSX4014MUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX4014MUTAG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The recommended operating voltage range is 3.0V to 5.5V. Additionally, ensure that the input voltage is within the specified range and that the output is properly terminated.
  • The NLSX4014MUTAG is capable of handling data rates up to 400 Mbps. However, the actual data rate may vary depending on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the NLSX4014MUTAG, start by checking the PCB layout and signal integrity. Verify that the device is properly biased and that the input and output signals are within the specified range. Use an oscilloscope to visualize the signals and identify any distortion or anomalies. If the issue persists, consult the datasheet and application notes for further guidance.
  • The NLSX4014MUTAG is rated for operation up to 85°C. However, it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for specific temperature-related derating guidelines.
