Part Image

NLSX4373DMR2G - onsemi

Description: Wide VCC Operating Range: 1.5V to 5.5V Wide VL Operating Range: 1.5V to 5.5V; High-Speed with 20 Mb/s Guaranteed Data Rates; Low BIt-to-bit skew; Small Packaging - 1.8 x 1.2 x 0.5mm UDFN8

Download NLSX4373DMR2G Model

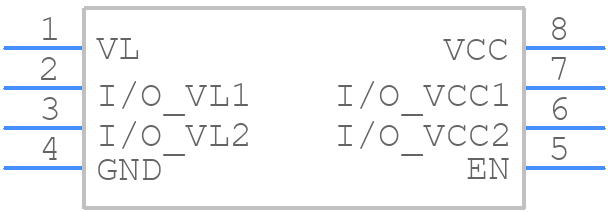

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX4373DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom
3D Models
NLSX4373DMR2G - onsemi  - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom

NLSX4373DMR2G Details

  • Manufacturer Part Number:

    NLSX4373DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Package Description:

    MICRO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    1000 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.5 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.5 V

  • Supply Voltage1-Nom:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NLSX4373DMR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. A 10uF input capacitor and a 22uF output capacitor are recommended.
  • Use a shielded inductor, keep the layout compact, and minimize loop areas. Add a common-mode choke and a ferrite bead to the input and output lines, respectively.
  • The input voltage deviation should be within ±10% of the nominal input voltage to ensure reliable operation.
