NLSX5012DR2G - onsemi

Description: Wide VCC, VL Operating Range: 0.9 V to 4.5 V; VL and VCC are independent VL may be greater than, equal to, or less than VCC; High 100 pF Capacitive Drive Capability; HighSpeed with 140 Mb/s Guaranteed Date Rate for VCC, VL > 1.8 V; Low Bit to Bit Skew; Overvoltage Tolerant Enable and I/O Pins; Nonpreferential PowerUp Sequencing; PowerOff Protection; Small packaging: UDFN8, SO8, Micro8; These are PbFree Devices

Download NLSX5012DR2G Model

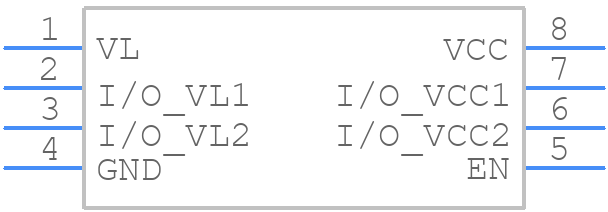

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX5012DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB
click to zoom
3D Models
NLSX5012DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB
click to zoom

NLSX5012DR2G Details

  • Manufacturer Part Number:

    NLSX5012DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    4.5 V

  • Supply Voltage1-Min:

    0.9 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NLSX5012DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX5012DR2G should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable operation over the full temperature range, follow these guidelines: use a thermally conductive material for the PCB, ensure good airflow, and avoid overheating the device. Also, consider the thermal derating of the device and the PCB material when operating at high temperatures.
  • The recommended input capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor, and the recommended output capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor. The capacitor values may vary depending on the specific application and operating conditions.
  • To protect the device from overvoltage and undervoltage conditions, consider using a voltage supervisor or a reset IC that can detect and respond to voltage faults. Additionally, use a TVS diode or a zener diode to clamp the input voltage and prevent damage from voltage spikes or surges.
  • The recommended input voltage range for the NLSX5012DR2G is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, reliability, or even cause damage.
