NLSX5012MUTAG - onsemi

Description: Wide VCC, VL Operating Range: 0.9 V to 4.5 V; VL and VCC are independent VL may be greater than, equal to, or less than VCC; High 100 pF Capacitive Drive Capability; HighSpeed with 140 Mb/s Guaranteed Date Rate for VCC, VL > 1.8 V; Low Bit to Bit Skew; Overvoltage Tolerant Enable and I/O Pins; Nonpreferential PowerUp Sequencing; PowerOff Protection; Small packaging: UDFN8, SO8, Micro8; These are PbFree Devices

Download NLSX5012MUTAG Model

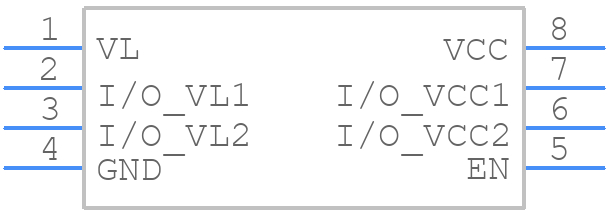

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX5012MUTAG - onsemi PCB footprint - Other - Other - UDFN8 1.8x1.2, 0.4P CASE 517AJ−01 ISSUE O_2020
click to zoom
3D Models
NLSX5012MUTAG - onsemi  - 3D model - Other - UDFN8 1.8x1.2, 0.4P CASE 517AJ−01 ISSUE O_2020
click to zoom

NLSX5012MUTAG Details

  • Manufacturer Part Number:

    NLSX5012MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    UDFN8 1.8x1.2, 0.4P

  • Package Description:

    UDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    517AJ

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    4.5 V

  • Supply Voltage1-Min:

    0.9 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.2 mm

NLSX5012MUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX5012MUTAG involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source, and consider using a voltage regulator to maintain a consistent voltage supply.
  • The NLSX5012MUTAG has a maximum junction temperature of 150°C. To ensure reliable operation, make sure to provide adequate heat sinking, use a thermal interface material, and keep the device away from heat sources. Also, consider using a thermal monitoring system to prevent overheating.
  • To troubleshoot issues with the NLSX5012MUTAG, start by checking the input and output voltages, and verifying that the device is properly biased. Use an oscilloscope to monitor the voltage and current waveforms, and check for any signs of overheating or electrical noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the NLSX5012MUTAG is susceptible to electromagnetic interference (EMI). To ensure compliance with regulatory standards, follow proper PCB layout and design practices, use shielding and filtering techniques, and consider using EMI-absorbing materials. Consult the datasheet and relevant regulatory standards (e.g., FCC, CE) for guidance on EMI/EMC compliance.
