NLSX5014DTR2G - onsemi

Description: Wide VCC, VL operating range: 0.9 V to 4.5 V; VL and VCC are independent. VL may be greater than, equal to, or less than VCC; High 100 pF capacitive drive capability; High speed with 140 Mb/s guaranteed date rate for VCC, VL > 1.8 V; Low bit to bit skew; Overvoltage tolerant Enable and I/O pins; Nonpreferential Power up sequencing; Power Off protection; Small packaging: 1.7 mm x 2.0 mm UQFN-12, SOIC-14, TSSOP-14; These are PbFree devices

Download NLSX5014DTR2G Model

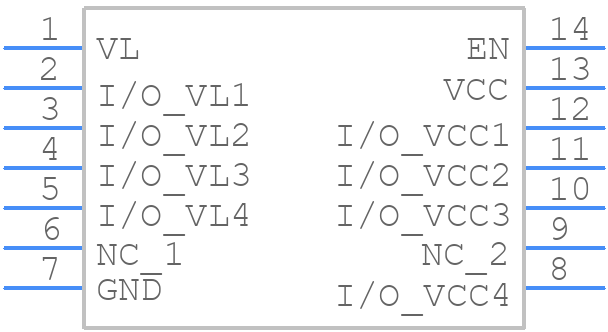

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX5014DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NLSX5014DTR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NLSX5014DTR2G Details

  • Manufacturer Part Number:

    NLSX5014DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    1.2 V

  • Supply Voltage1-Min:

    0.9 V

  • Supply Voltage1-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLSX5014DTR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX5014DTR2G involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The EN pin should be tied to VCC or a voltage source that is at least 1.5V above the input voltage. The FB pin should be connected to a resistive divider to set the output voltage.
  • The NLSX5014DTR2G can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and to prevent overheating.
  • To protect the NLSX5014DTR2G from overcurrent and overheating, add overcurrent protection (OCP) and overvoltage protection (OVP) circuits to the design. Also, ensure good thermal management by providing adequate heat sinking and airflow around the device.
  • The recommended input capacitor value for the NLSX5014DTR2G is 10uF to 22uF, with an ESR of less than 100mΩ. A ceramic capacitor with an X5R or X7R dielectric is recommended.
