NLSX5014MUTAG - onsemi

Description: Wide VCC, VL operating range: 0.9 V to 4.5 V; VL and VCC are independent. VL may be greater than, equal to, or less than VCC; High 100 pF capacitive drive capability; High speed with 140 Mb/s guaranteed date rate for VCC, VL > 1.8 V; Low bit to bit skew; Overvoltage tolerant Enable and I/O pins; Nonpreferential Power up sequencing; Power Off protection; Small packaging: 1.7 mm x 2.0 mm UQFN-12, SOIC-14, TSSOP-14; These are PbFree devices

Download NLSX5014MUTAG Model

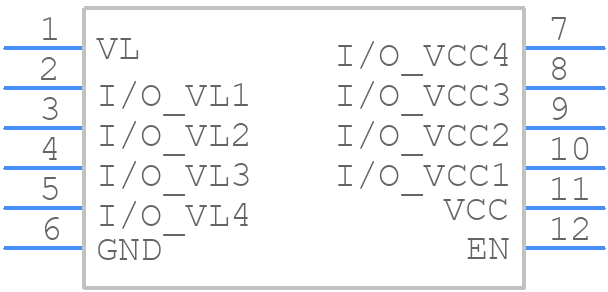

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLSX5014MUTAG - onsemi PCB footprint - Other - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE−01 ISSUE A
click to zoom
3D Models
NLSX5014MUTAG - onsemi  - 3D model - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE−01 ISSUE A
click to zoom

NLSX5014MUTAG Details

  • Manufacturer Part Number:

    NLSX5014MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UQFN12 2.0x1.7, 0.4P

  • Package Description:

    UQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    523AE

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    40 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    1.2 V

  • Supply Voltage1-Min:

    0.9 V

  • Supply Voltage1-Nom:

    0.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm

NLSX5014MUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NLSX5014MUTAG involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the input and output pins with suitable capacitors to minimize noise and ripple.
  • The NLSX5014MUTAG has a maximum junction temperature of 150°C. To ensure reliable operation, make sure to provide adequate heat sinking, use a thermal interface material, and keep the device away from heat sources. Also, follow the recommended thermal design guidelines in the datasheet.
  • To troubleshoot issues with the NLSX5014MUTAG, start by verifying the power supply voltage and current, checking for proper biasing, and ensuring the device is operated within the recommended temperature range. Use an oscilloscope to monitor the input and output signals, and check for any signs of overheating or electrical overstress.
  • Yes, the NLSX5014MUTAG is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or die. Also, ensure the PCB and components are properly grounded during assembly.
