Part Image

NLV14051BDTR2G - onsemi

Description: Encoders, Decoders, Multiplexers & Demultiplexers ANALOG MULTIPLEXERS/DEMUL 3.0 Vdc to 18 Vdc +10mA 8−Channel 17MHz −55 to +125°C

Download NLV14051BDTR2G Model

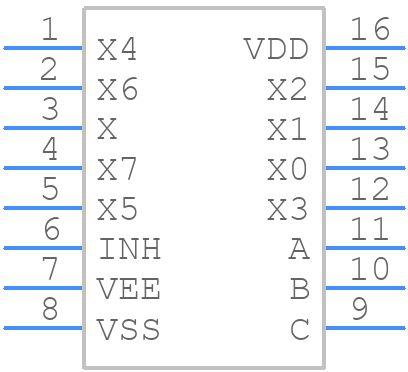

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14051BDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−16 WB CASE 948F ISSUE B_2026
click to zoom
3D Models
NLV14051BDTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−16 WB CASE 948F ISSUE B_2026
click to zoom

NLV14051BDTR2G Details

  • Manufacturer Part Number:

    NLV14051BDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.08

  • Analog IC - Other Type:

    SP8T

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Signal Current-Max:

    0.025 A

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NLV14051BDTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLV14051BDTR2G is 2.7V to 5.5V.
  • To ensure stability, it's recommended to use a minimum output capacitance of 1uF, and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of 0.1 ohm or less.
  • The maximum output current of NLV14051BDTR2G is 500mA.
  • To handle thermal considerations, ensure a minimum copper area of 1 square inch for the thermal pad, and use a thermal interface material with a thermal conductivity of at least 1 W/m-K.
  • The EN (Enable) pin is used to enable or disable the regulator. When EN is high, the regulator is enabled, and when EN is low, the regulator is disabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLV14051BDTR2G Overview

Use the download button to access the NLV14051BDTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLV14, or try a keyword search, such as Multiplexers or Switches
