Description:For Lower RON , Use The HC4066 High-Speed CMOS Device; Pin-for-Pin Replacement for CD4016, CD4016, MC14016B; Triple Diode Protection on All Control Inputs; Linearized Transfer Characteristics; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Low Noise - 12 nV/sqrt.Cycle, f >= 1.0 kHz typical; Pb-Free Packages are Available*
A good PCB layout practice for NLV14066BDR2G is to keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and keep the switching node (SW) away from sensitive nodes.
When selecting an inductor for NLV14066BDR2G, consider the inductor's saturation current, DC resistance, and self-resonant frequency. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes power loss. Consult the datasheet and application notes for more guidance.
The maximum ambient temperature for NLV14066BDR2G is 105°C, as specified in the datasheet. However, it's essential to consider the device's junction temperature, which should not exceed 150°C. Ensure proper thermal design and heat dissipation to maintain a safe operating temperature.
Yes, NLV14066BDR2G is suitable for high-reliability applications. It's built with onsemi's proprietary BCD (Bipolar-CMOS-DMOS) process, which provides high reliability and robustness. However, it's essential to follow proper design and manufacturing guidelines, as well as perform thorough testing and validation to ensure the device meets the specific application's requirements.
To troubleshoot NLV14066BDR2G-related issues, start by reviewing the datasheet and application notes. Check the device's pinout, voltage ratings, and operating conditions. Use oscilloscopes and other diagnostic tools to identify issues such as voltage spikes, oscillations, or overheating. Consult onsemi's support resources, such as FAQs, forums, and technical support teams, for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLV14066BDR2G Overview

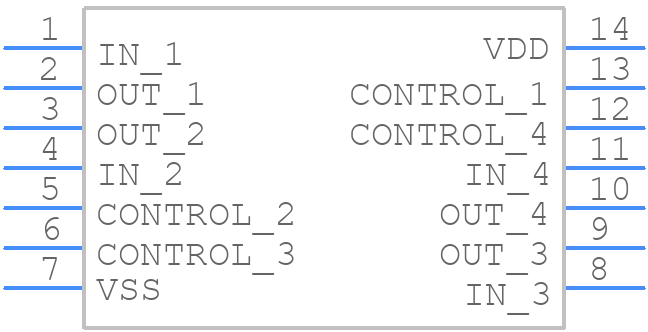

Use the download button to access the NLV14066BDR2G schematic symbol, PCB footprint, and 3D model.
