NLV14538BDR2G - onsemi

Description: Pulse Width Range = 10 ms to 10 s; Latched Trigger Inputs; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Unlimited Rise and Fall Time Allowed on the A Trigger Input; Pin-for-pin Compatible with MC14528B and CD4528B (CD4098); Use the MC54/74HC4538A for Pulse Widths Less Than 10 ms with Supplies Up to 6 V.; 3.0 Vdc to 18 Vdc Operational Limits; Separate Latched Reset Inputs; Triggerable from Positive (A Input) or Negative-Going Edge (B-Input);

Download NLV14538BDR2G Model

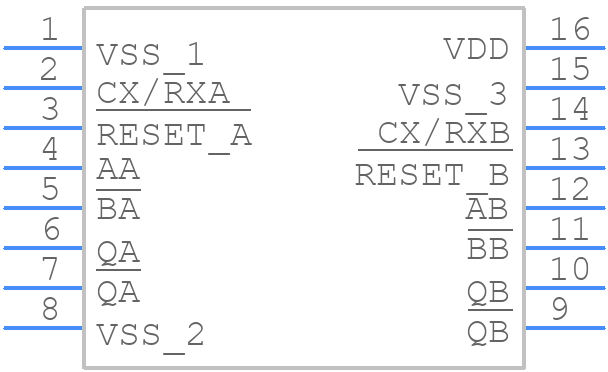

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14538BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
NLV14538BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

NLV14538BDR2G Details

  • Manufacturer Part Number:

    NLV14538BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    600 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
