NLV14541BDR2G - onsemi

Description: Supply Voltage Range = 3.0 Vdc to 18 Vdc with Auto Reset Disabled (Pin 5 = VDD) 8.5 Vdc to 18 Vdc with Auto Reset Enabled (Pin 5 = VSS); Built-in Low Power RC Oscillator (+/- 2% accuracy over temperature range and +/- 20% supply and +/- 3% over processing at < 10 kHz); Available Outputs 28, 210, 213 or 216; Q/Qbar Select Provides Output Logic Level Flexibility; Clock Conditioning Circuit Permits Operation with Very Slow Clock Rise and Fall Times; Reset (auto or master) Disables Oscillator During Resetting t

Download NLV14541BDR2G Model

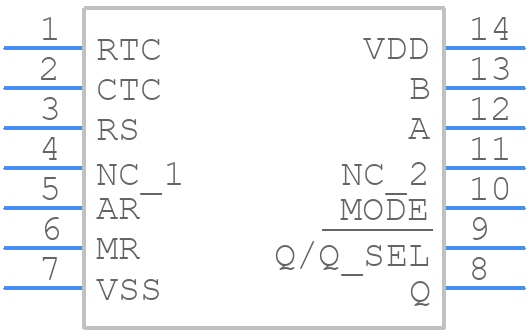

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14541BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NLV14541BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NLV14541BDR2G Details

  • Manufacturer Part Number:

    NLV14541BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.32

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Number of Timers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

NLV14541BDR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLV14541BDR2G is 2.7V to 5.5V.
  • To ensure stability, it's recommended to use a minimum output capacitance of 1uF, and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a capacitor (e.g., 10nF) between the FB pin and GND.
  • The maximum input voltage that NLV14541BDR2G can handle is 6.5V. Exceeding this voltage may cause damage to the device.
  • The output voltage (Vout) can be calculated using the formula: Vout = (R1 / R2) * 0.8V, where R1 and R2 are the resistors connected to the FB pin.
  • The quiescent current of NLV14541BDR2G is typically around 50uA, but it can vary depending on the input voltage and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLV14541BDR2G Overview

Use the download button to access the NLV14541BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLV14, or try a keyword search, such as Timers or RTCs
