NLV14551BDR2G - onsemi

Description: Analog Voltage Range (VDD - VEE) = 3.0 to 18 V Note: VEE must be less than or equal to VSS; Low Noise - 12 nVW sq. root Cycle, f is greater than or equal to 1.0 kHz typical; Switch Function is Break Before Make; Triple Diode Protection on All Control Inputs; Linearized Transfer Characteristics; For Low RON, Use The HC4051, HC4052, or HC4053 High-Speed CMOS Devices; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Pb-Free Packages are Available

Download NLV14551BDR2G Model

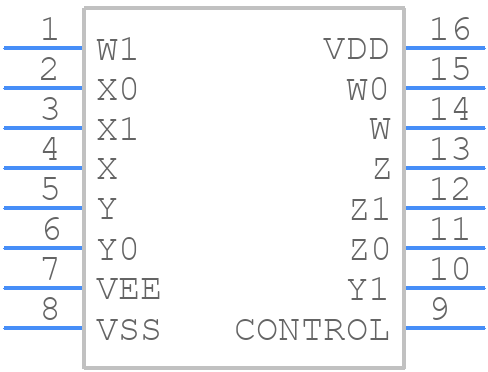

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14551BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NLV14551BDR2G - onsemi  - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NLV14551BDR2G Details

  • Manufacturer Part Number:

    NLV14551BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    25 Ω

  • On-state Resistance-Max (Ron):

    1050 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    875 ns

  • Switch-on Time-Max:

    875 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLV14551BDR2G Overview

Use the download button to access the NLV14551BDR2G schematic symbol, PCB footprint, and 3D model.
