NLV74HC4067ADTR2G - onsemi

Description: Fast Switching and Propagation Speeds; High ON/OFF Output Voltage Ratio; Low Crosstalk Between Switches; Diode Protection on All Inputs/Outputs; Wide PowerSupply Voltage Range (VCC-GND) = 2.0 to 6.0 V; Analog Input Voltage Range (VCC-GND) = 0 to 6.0 V; Improved Linearity and Lower ON Resistance over Input Voltage; Low Noise; These are PbFree Devices

Download NLV74HC4067ADTR2G Model

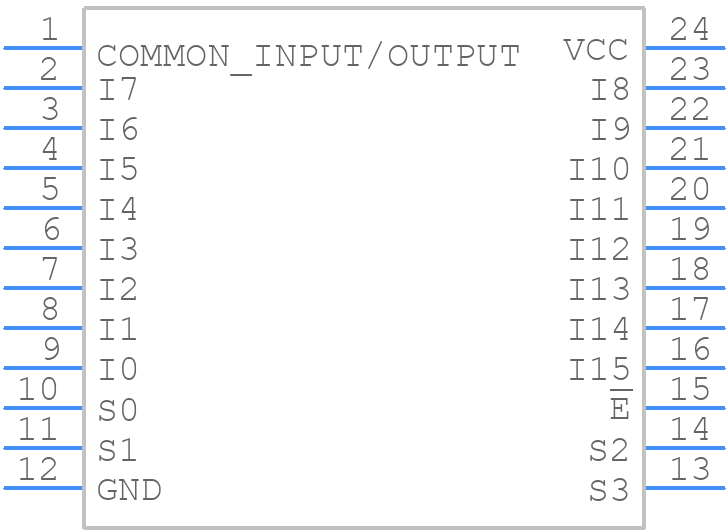

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV74HC4067ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24 7.8x4.4, 0.65P
click to zoom
3D Models
NLV74HC4067ADTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP24 7.8x4.4, 0.65P
click to zoom

NLV74HC4067ADTR2G Details

  • Manufacturer Part Number:

    NLV74HC4067ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP24 7.8x4.4, 0.65P

  • Pin Count:

    24

  • Manufacturer Package Code:

    948H-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Additional Feature:

    ALSO HAS SWITCH-ON TIME=415NS, SWITCH-OFF TIME=415NS FOR ENABLE TO OUTPUT

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    65 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    160 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    435 ns

  • Switch-on Time-Max:

    450 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLV74HC4067ADTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLV74HC4067ADTR2G is 2.0V to 6.0V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
  • Yes, NLV74HC4067ADTR2G can be used in a 5V system. However, ensure that the input signals do not exceed the maximum rating of 6.0V, and consider adding voltage clamping diodes to protect the device from overvoltage conditions.
  • To ensure proper power sequencing, ensure that the power rails are turned on in the correct sequence, typically starting with the lowest voltage rail. Also, consider using power sequencing controllers or voltage supervisors to manage the power-up sequence.
  • The maximum frequency of operation for NLV74HC4067ADTR2G is typically up to 100 MHz, but this can vary depending on the specific application and PCB design. Consult the datasheet and application notes for more information.
