NLV74HC4316ADR2G - onsemi

Description: Improved Linearity of ON Resistance; Chip Complexity: 66 FETs or 16.5 Equivalent Gates; Fast Switching and Propagation Speeds; Logic-Level Translator for On/Off Control and Enable Inputs; Analog Power-Supply Voltage Range (VCC - VEE) = 2.0 to 12.0 Volts; High ON/OFF Output Voltage Ratio; Diode Protection on All Inputs/Outputs; Digital (Control) Power-Supply Voltage Range (VCC - GND) = 2.0 to 6.0 Volts, Independent of VEE; Pb-Free Packages are Available*

Download NLV74HC4316ADR2G Model

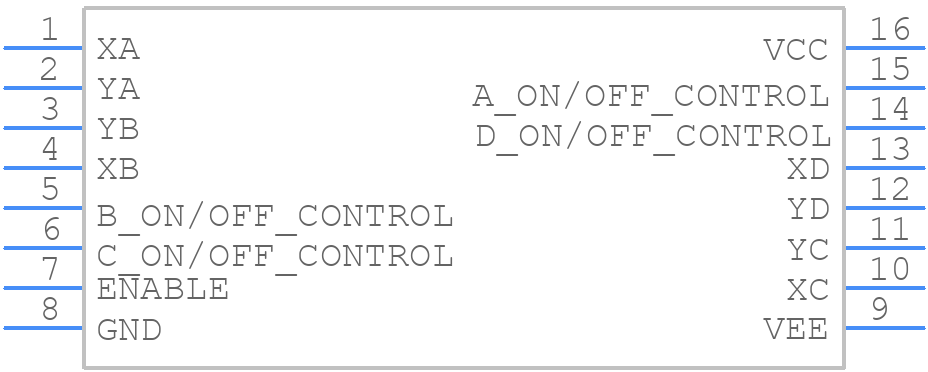

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV74HC4316ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom
3D Models
NLV74HC4316ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom

NLV74HC4316ADR2G Details

  • Manufacturer Part Number:

    NLV74HC4316ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    240 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NLV74HC4316ADR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLV74HC4316ADR2G is 2.0 V to 5.5 V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
  • The maximum clock frequency that NLV74HC4316ADR2G can handle is 100 MHz.
  • NLV74HC4316ADR2G is a CMOS device and can be directly interfaced with most microcontrollers and digital logic devices. However, it is recommended to follow proper signal integrity and termination practices to ensure reliable data transfer.
  • The power consumption of NLV74HC4316ADR2G depends on the operating frequency and voltage. At a frequency of 100 MHz and a voltage of 5.0 V, the typical power consumption is around 20 mA.
