NLV74HC595ADTR2G - onsemi

Description: Counter Shift Registers SHIFT REGISTER 3-STA

Download NLV74HC595ADTR2G Model

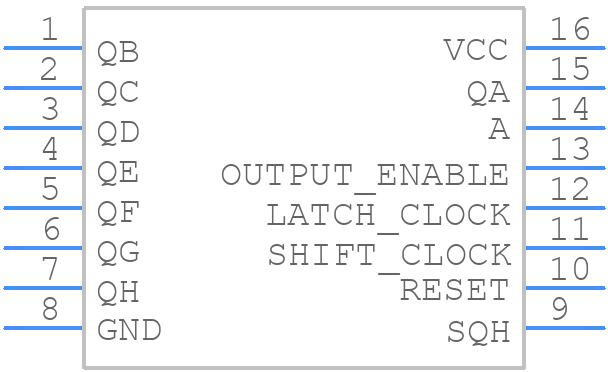

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV74HC595ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom
3D Models
NLV74HC595ADTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP-16 CASE 948F ISSUE B
click to zoom

NLV74HC595ADTR2G Details

  • Manufacturer Part Number:

    NLV74HC595ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Propagation Delay (tpd):

    210 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    4.4 mm

  • fmax-Min:

    24 MHz

NLV74HC595ADTR2G Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the NLV74HC595ADTR2G is 30 MHz.
  • Yes, the NLV74HC595ADTR2G is compatible with 5V systems, but it's recommended to use a voltage regulator to ensure a stable 5V supply.
  • The output enable (OE) pin should be connected to GND to enable the outputs. If OE is connected to VCC, the outputs will be in a high-impedance state.
  • The maximum current rating for each output pin is 25 mA.
  • Yes, the NLV74HC595ADTR2G is compatible with 3.3V systems, but the output voltage will be limited to 3.3V.
