NLVPCA9535EDTR2G - onsemi

Description: Interface - I/O Expanders I/O Port Expander, I2C, 16-bit, Low-Power w/Interrupt Automotive

Download NLVPCA9535EDTR2G Model
Schematic
symbols

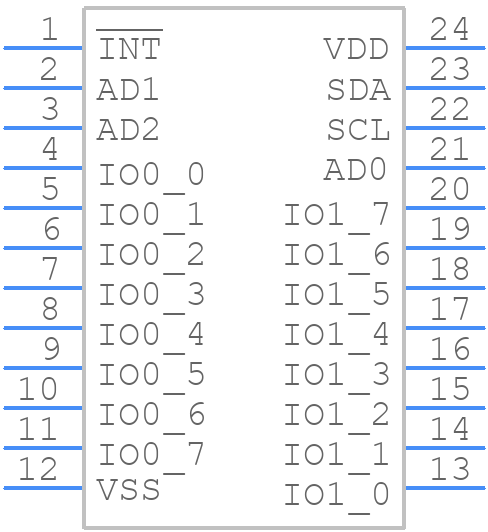

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLVPCA9535EDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−24
click to zoom
3D Models
NLVPCA9535EDTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−24
click to zoom

NLVPCA9535EDTR2G Details

  • Manufacturer Part Number:

    NLVPCA9535EDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP24 7.8x4.4, 0.65P

  • Manufacturer Package Code:

    948H-01

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0.4

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

NLVPCA9535EDTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLVPCA9535EDTR2G is 2.3V to 5.5V.
  • To ensure reliable communication, make sure to use a pull-up resistor on the SDA line, and use a clock frequency within the recommended range of 100 kHz to 400 kHz.
  • The NLVPCA9535EDTR2G can sink or source up to 25mA of current per output pin.
  • The NLVPCA9535EDTR2G is configured for I2C-bus operation by default. To configure it for SMBus operation, connect the SMBus pin to VCC.
  • The internal pull-up resistors on the NLVPCA9535EDTR2G are used to pull up the SDA and SCL lines to the supply voltage when the device is not transmitting data.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLVPCA9535EDTR2G Overview

Use the download button to access the NLVPCA9535EDTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLVPC, or try a keyword search, such as Parallel IO Ports
