NLVX1G74MUTCG - onsemi

Description: Extremely High Speed: tPD = 2.6 ns (typical) at VCC = 5.0 V; Designed for 1.65 V to 5.5 V VCC Operation; Low Power Dissipation: ICC = 1 A (Max) at TA = 25C; 24 mA Balanced Output Sink and Source Capability at VCC = 3.0 V; Balanced Propagation Delays; Overvoltage Tolerant (OVT) Input Pins; Ultra Small Package; This is a PbFree Device

Download NLVX1G74MUTCG Model
Schematic

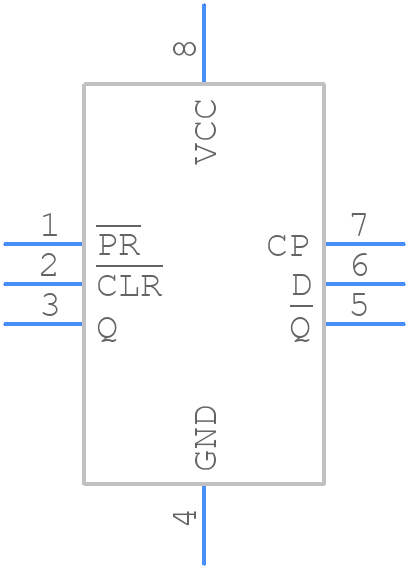

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLVX1G74MUTCG - onsemi PCB footprint - Other - Other - NLVX1G74MUTCG-2
click to zoom
3D Models
NLVX1G74MUTCG - onsemi  - 3D model - Other - NLVX1G74MUTCG-2
click to zoom

NLVX1G74MUTCG Details

  • Manufacturer Part Number:

    NLVX1G74MUTCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UQFN8 1.6x1.6, 0.5P

  • Pin Count:

    8

  • Manufacturer Package Code:

    523AN

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    1G

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    1.6 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    175000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    7.5 ns

  • Propagation Delay (tpd):

    13 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    1.6 mm

  • fmax-Min:

    250 MHz
