NMT1272SC - Murata Electronics

Description: Murata Power Solutions NMT 3W Isolated DC-DC Converter Through Hole, Vin 10.8 → 13.2 V dc, Vout -72/-48/-24V dc

Download NMT1272SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

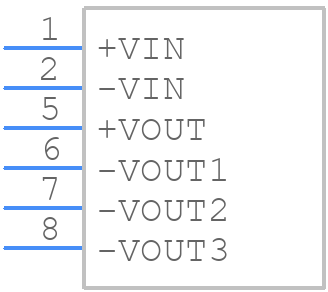

Symbol
NMT1272SC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NMT1272SC - Murata Electronics PCB footprint - Other - Other - NMT1272SC
click to zoom
3D Models
NMT1272SC - Murata Electronics - 3D model - Other - NMT1272SC
click to zoom

NMT1272SC Details

  • Manufacturer Part Number:

    NMT1272SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO HAS -48V AND -72V OUTPUT VOLTAGES

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T6

  • JESD-609 Code:

    e3

  • Line Regulation-Max:

    1.2%

  • Load Regulation-Max:

    15%

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.042 A

  • Output Voltage-Nom:

    -24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

NMT1272SC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NMT1272SC can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The NMT1272SC has a thermal resistance of 10°C/W, and it's recommended to use a thermal pad or thermal via to improve heat dissipation. A thermal interface material (TIM) can also be used to reduce thermal resistance.
  • The NMT1272SC has an operating temperature range of -40°C to 125°C, but it's recommended to derate the component's power handling capability at higher temperatures to ensure reliability.
  • The NMT1272SC is designed to withstand vibrations up to 10G, but it's recommended to use a vibration-dampening material or a mechanical fixturing system to ensure the component's reliability in high-vibration environments.
  • The NMT1272SC has a recommended soldering temperature profile of 260°C for 10 seconds, and it's recommended to use a solder with a melting point of 217°C or higher. A soldering iron with a temperature control system is also recommended.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NMT1272SC Overview

Use the download button to access the NMT1272SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NMT12, or try a keyword search, such as Other Signal Circuits

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
