NMUX1309APWJ - Nexperia

Description: 2x SP4T-Z functionality • Rail-to-Rail operation on analog signal pins • Injection current control: 0.1 mV measurement voltage offset up to 10 mA of injected current • 1.8 V digital logic thresholds • Digital pins compatible with 1.8 V logic thresholds across full VCC range • Removes need for up-translation device for compatibility with low voltage GPIOs • Ioff circuitry • Enables wider latitude for power sequencing considerations • Isolates backflow between supply rail and any biased digital

Download NMUX1309APWJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

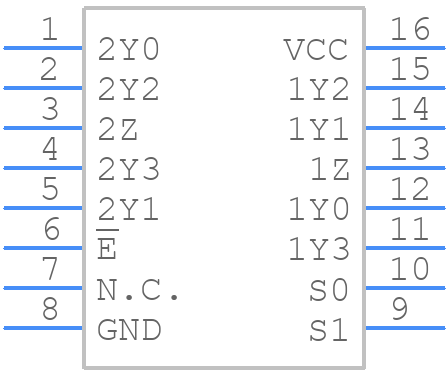

NMUX1309APWJ - Nexperia - PCB symbol
